Network Function Settings Description

Web System Requirements

Web Browser:

  • Internet Explorer 11 and above
  • FireFox 59.0.2 and above
  • Chrome 65.0.3325.181 and above
  • Edge 41.16299.15 and above
  • Safari 11.0.3 and above

Online IP Camera

Connecting to Internet

Two common connection methods are shown below

  1. Connecting via switch or router

  1. To connect directly through network cable, the IP address of the computer should be changed so that it is on the same network segment as the camera; for instance 192.168.100.x (preset for camera)
  • Connection diagram



  • Change network settings

Use the web browser

  1. Open the IE browser, and enter the URL of IP-CAM 50 in the address bar, such as: http://192.168.100.150 (default IP address)
  2. Enter administrator’s account and password to get started
    Account: admin (Default)
    Password: 9999 (Default)

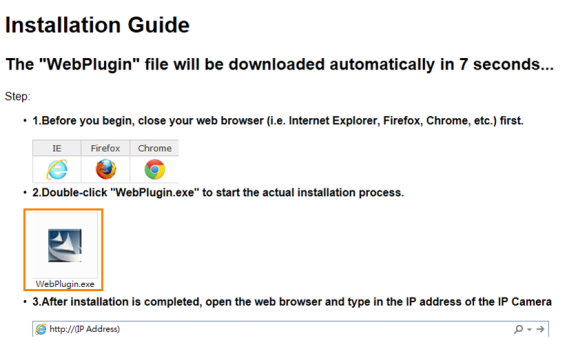

1. “WebPlugin�? must be installed before the first use. Please install the program after downloading according to instructions on the screen (as shown in the following figure)

2. Please login the computer as Administrator to install it

3. After completing installation, please refresh the page.






Use VMS

  1. Please download VMS software from Lumens website: http://www.MyLumens.com/support.php
  2. After starting the software, use search function to find out available IP-CAM 50, or add a known IP-CAM 50 IP address
  3. Click IP-CAM 50 in the list and start operation after connecting to network



Use RTSP player

In addition to browser and VMS, other RTSP methods can be used for connection, such as VLC and Quick Time

RTSP connection address:



  1. Open the software to enter URL:  rtsp://192.168.100.150:8557/h264

Use RTMP connection

Support RTMP connection. If RTMP server is set up, RTMP connection function can also be opened

Please log into IP-CAM 50 webpage to change RTMP of network setting as described in "Use the web browser" on page 1.

To upload to YouTube for online viewing, please refer to "Settings – Audio Setting" on page 1and turn on sound



Web Page Function Description



Login Screen

Username: Enter user account

Password: Enter user password

Select Language: Select language from English, Traditional Chinese and Simplified Chinese

Remember password: Remember the password so that you do not need to type it next time

Login: Log into the administrator screen on the website

Preview Screen

1. Rotate camera angle

2. Zoom in/out

3. Preview window

4. Power off IP-CAM 50

5. Apply/Set preset

6. Switch to Full Screen

7. Logout

Account management screen

1. Enter new username and password

2. Set the permissions: Description for permissions is listed in the following table

3. Apply

4. List of accounts:
Edit: Change password and permission of new account
Delete: Delete new account

Reference for User Permissions:

User Type

Admin

Operator

Viewer

View images

Y

Y

Y

Settings

Y

Y

N

User accounts management

Y

N

N



Settings – Video Setting

1. Camera name: Change camera name on this page

2. Select rate and encoding

3. Storage setting; for advanced settings, see "Settings –Advanced Video Setting" on page 1



Settings –Advanced Video Setting

1. IP Ratio: Set IP Ratio, from 1 to 60

2. Force I Frame :

Check this item to insert IDR frame into specified series flow and apply its setting. User’s setting will be reserved and displayed in GUI interface

3. Encode Preset :

Auto:Select between speed and quality depending on the encoding method used (e.g. HIGH_SPEED mode for refresh rate of 60 frames per second and HIGH_QUALITY mode for high image quality)

HIGH_SPEED: Refresh rate of 60 frames per second is available

HIGH_QUALITY: Higher image quality can be obtained.

SVC:SVC opened encoding mode is applicable to RTSP series flow of 8601, 8602, 8603 and 8604 ports, different refresh rate for different ports. See remark

4. Encode Profile: Encoded Information

5. Preset Save

<Remark> SVC connection address: rtsp://VC IP Address:Port/h264

1. 60Frame:rtsp://VC IP Address:8557/h264, E.g.: rtsp://192.168.100.150:8557/h264

2. 30Frame:rtsp://VC IP Address:8601/h264, E.g.: rtsp://192.168.100.150:8601/h264

3. 15Frame:rtsp://VC IP Address:8602/h264, E.g.: rtsp://192.168.100.150:8602/h264

4. 7Frame:rtsp://VC IP Address:8603/h264, E.g.: rtsp://192.168.100.150:8603/h264

5. 3Frame:rtsp://VC IP Address:8604/h264, E.g.: rtsp://192.168.100.150:8604/h264

Setting - camera

1. Rotate camera lens angle

2. Save/Read preset

3. Adjust image size

4. Adjust camera settings. Please refer to "Settings –Advanced Camera Setting" on page 1

5. Preset Save

Settings –Advanced Camera Setting

1.. Exposure:

  • Mode: Select exposure mode
  • Exposure Comp. Level: Select exposure compensation level
  • Gain: Adjust gain restriction
  • Iris: Iris setting
  • WDR: WDR settings
  • Shutter Speed: Shutter settings

2. White Balance:

  • Mode: Select the color temperature mode
  • Open Push Trigger: Single color temperature execution adjustment
  • Manual Red/Blue: Manually adjust blue/red color temperature

3. Focus:

  • Mode: Select manual/automatic focus
  • Focus Range: Set focus range
  • AF Sensitivity: Set automatic focus sensitivity
  • AF Speed: Set automatic focus speed
  • AF Frame: Set automatic focus range
  • PTZ Assist: Set Auto Focus in manual mode

4. Mirror:

  • Mirror: Set automatic flip mode

Settings – Picture Setting

1. Picture Effect: Set the picture effect

2. 2D NR: 2D noise reduction settings

3. 3D NR: 3D dynamic noise reduction settings

4. Image Mode: The user may customize his/her desired image mode

5. Image Mode Load: Adjustable when Image Mode is set to Custom, similar to OSD

6. Black Level: Adjustable when Image Mode is set to Custom, similar to OSD

7. Gamma: Adjustable when Image Mode is set to Custom, similar to OSD

8. Skin Tone: Skin tone settings; adjustable when Image Mode is set to Custom, similar to OSD

9. Brightness: Adjustable when Image Mode is set to Custom, similar to OSD

10. Contrast: Adjustable when Image Mode is set to Custom, similar to OSD

11. Saturation: Adjustable when Image Mode is set to Custom, similar to OSD

12. Sharpness: Adjust the sharpness of the image

Settings – Audio Setting

1. Turn on/off sound

2. Set MIC In/Line In

3. Adjust the Volume

4. Set audio delay

5. Set Encode Type (ACC / G.711)

6. Set Encode Sample rate

7. Preset Save

Settings- Date/ Time Setting

1. Current camera date and time

2. Set the Time: Manual setting/synchronous computer time/synchronous SNTP server time/time of automatic adjustment of daylight saving

3. Preset Save

SNTP server address: Please change in network setting

Setting -- Network and Port Setting

1. Network address of camera: Change of setting is available only when DHCP function of camera is turned off; please turn off DHCP function using IP-CAM 50 screen menu, and for setting of each item of screen menu, see "Setting Menu" on page 1

2. Set RTMP: Set connection address of RTMP depending on RTMP Server setting

3.Set RTSP: Enable/Disable Multicast

It is suggested to enable Multicast when the number of users online watching the live image simultaneously is more than 4.

4. Set MPEG-TS: Set MPEG-TS format

5. Set SRT: Set SRT streaming

6. Set SNTP: Set SNTP Server IP

7. Set HTTP port. The default Port value is 80

Change of setting is available only when DHCP function of camera is closed



Maintenance



1. Firmware Upload

2. Error Log

3. Factory Reset

4. Set ONVIF command as “standard�? or “custom�?

5. NDI registration information
